COMING SOON !
ATARDIS
VAN MANSION™
Highly Expandable Multipurpose Micro Motorhomes
SMALL SIZE FOR A VAN, GIANT STRIDES FOR VANKIND™
VAN MANSION 187‑4BR
18.7' (5.7 m) with 8' (2.43‑m)
cab length
• 330 sqft.

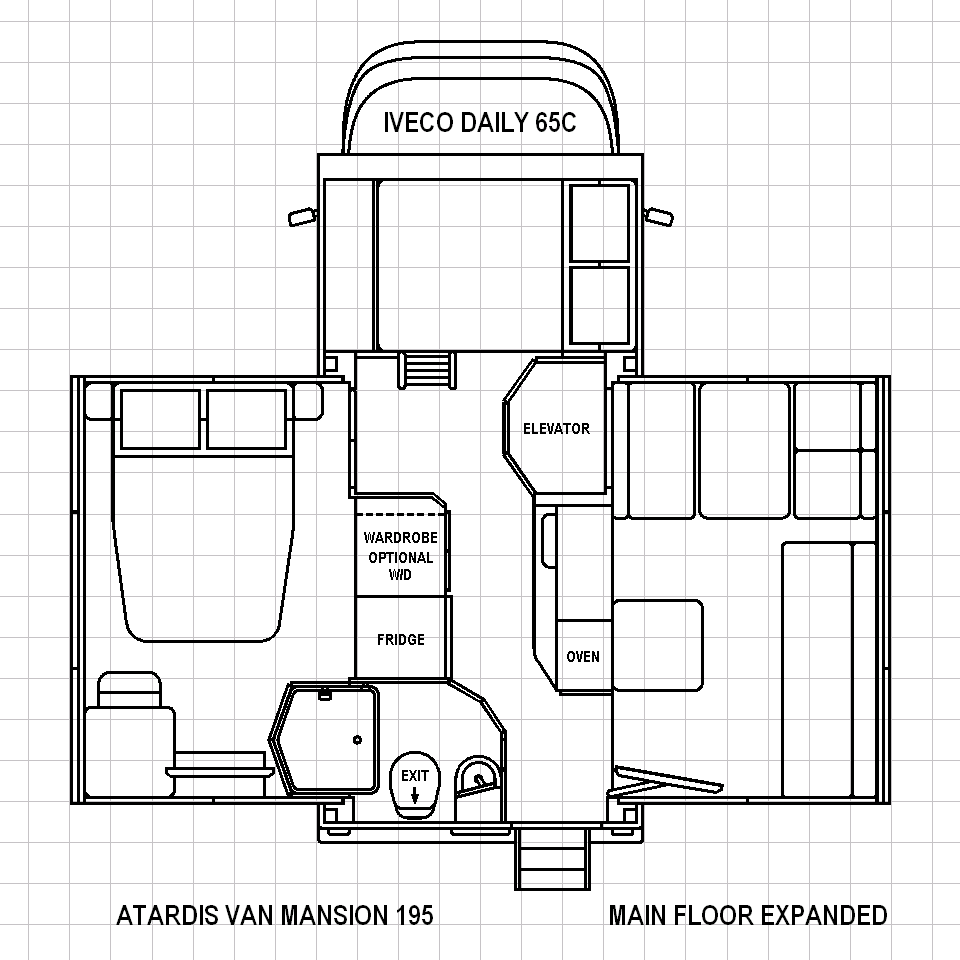

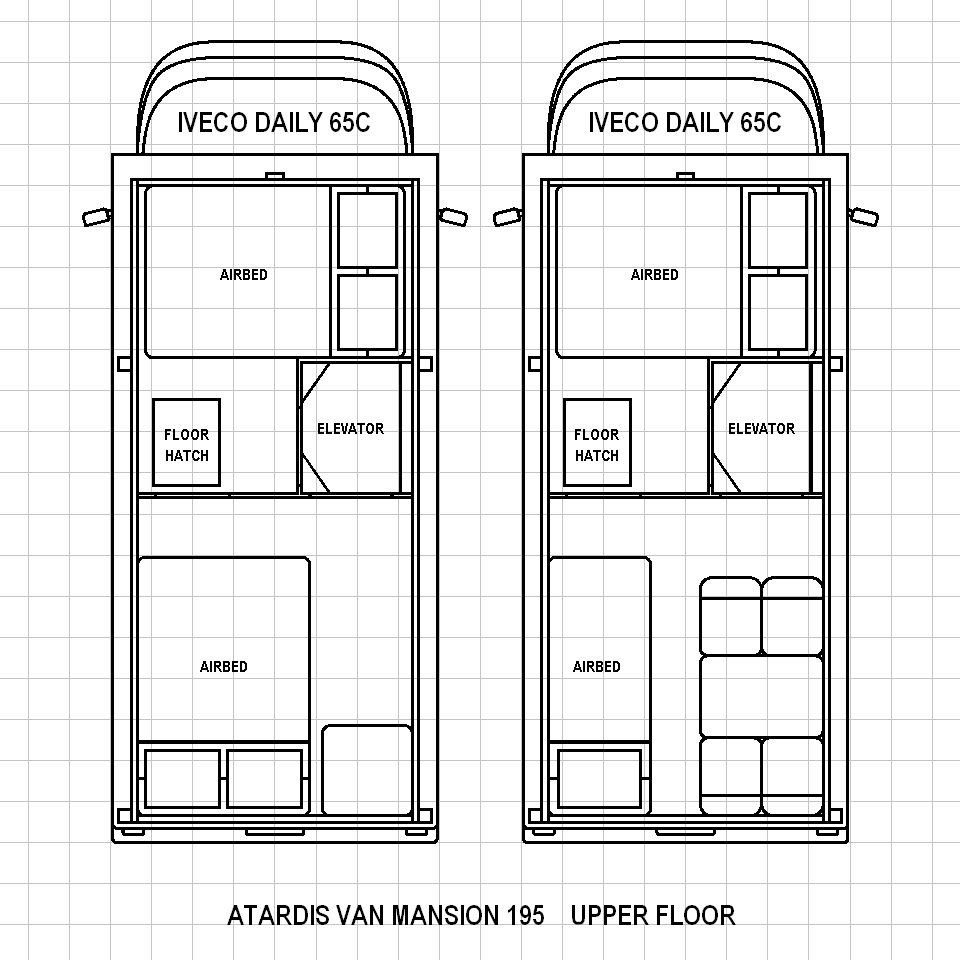

with up to 4 walk-in bedrooms in addition to a lounge, a galley and a dry bath
with a large shower
• Safely transports up to 6 with seat belts and sleeps up to 10 in 5 rooms
with 4 double beds and 2 single beds
• Comfortably accommodates a family of 6 with a separate room for the
parents and each of the children to sleep in

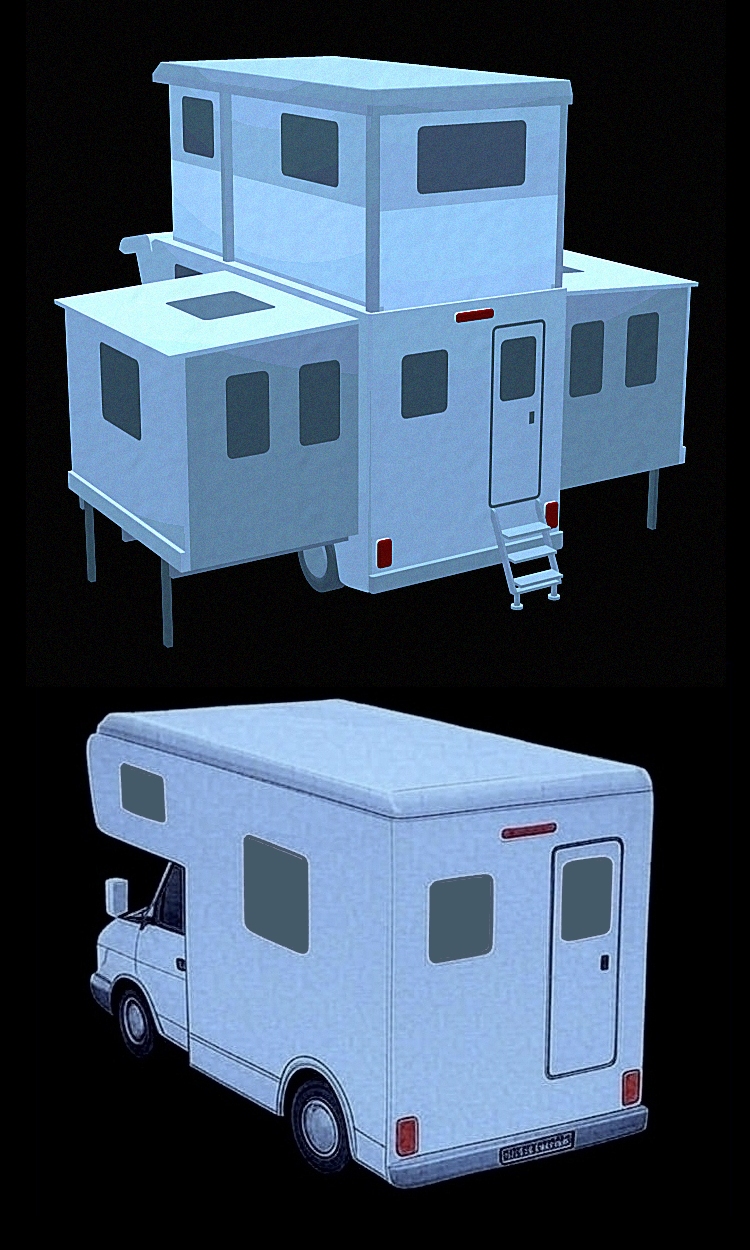

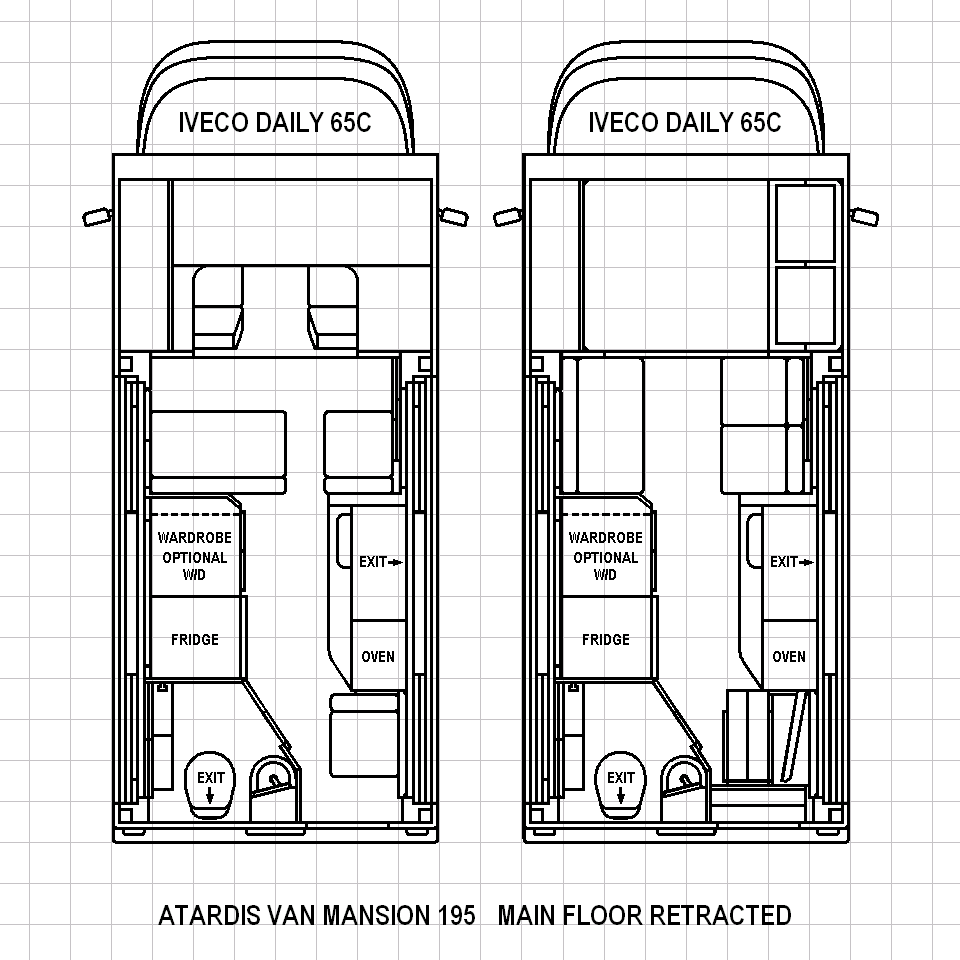

• Fully functional in its retracted configuration as a self-contained
motorhome with all the amenities readily accessible
• All the furniture and appliances shown below can be stored inside the
motorhome in its fully retracted configuration.
• 18.7' x 7.9' x

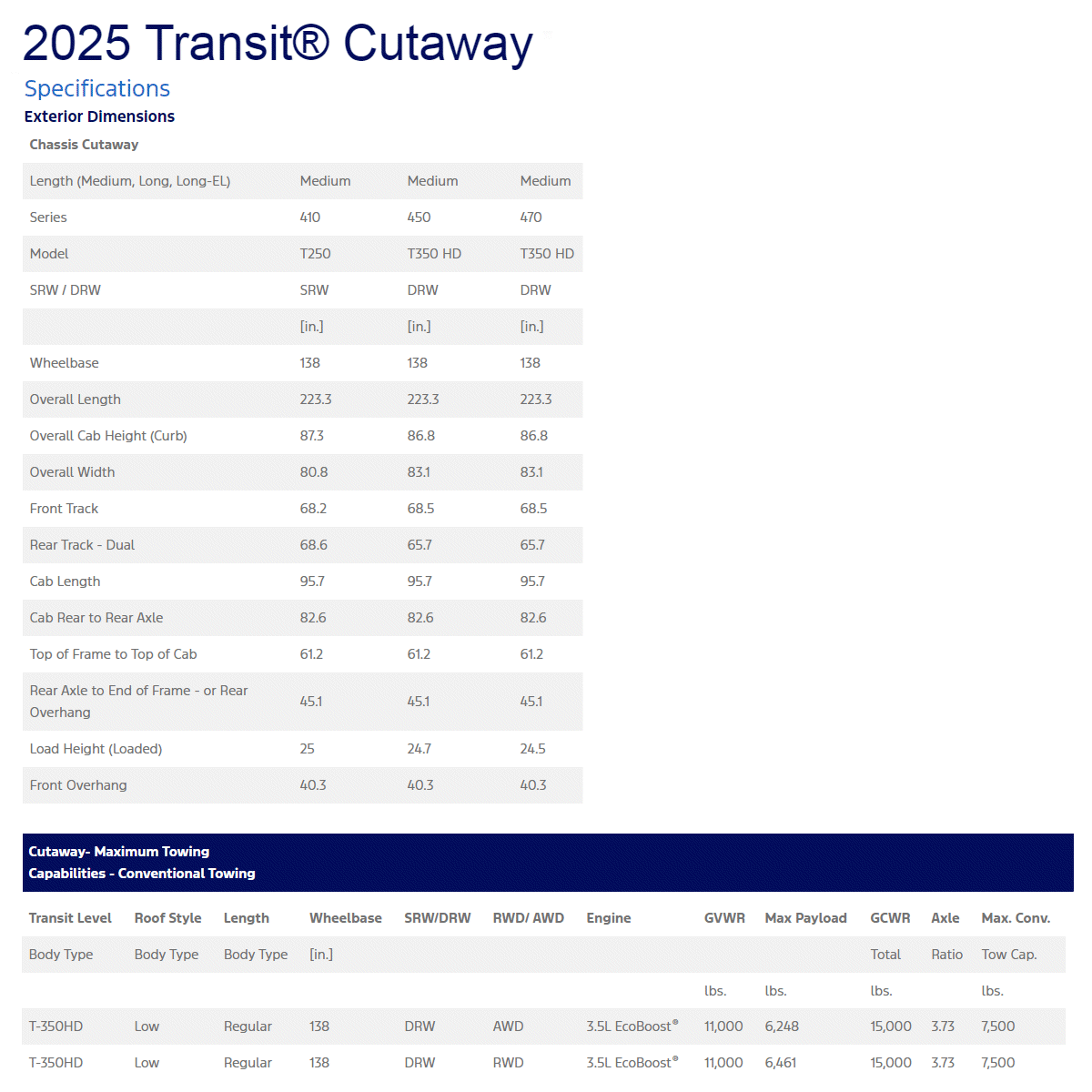

10.8' (5.7 m x 2.4 m x 3.3 m) on a Ford Transit van chassis with
138" WB and 6,461 lbs. max. payload
• 20.0' x 19.7' x 16.5' (6.1 m x 6.0 m x 5.0 m) in its
fully expanded configuration with the rear entry steps extended
• Similar in
length to Tesla Cybertruck (18.64'), Chevy Suburban (18.9') and Rolls-Royce
Phantom SWB (18.93')
• A prototype will
be built on a 20.5' Mercedes-Benz Sprinter chassis with 144" WB and 7,506
lbs. max. payload.
• The additional length will allow for more storage as well as a larger
fridge and worksurface and larger rooms.
• The higher max. payload will also allow for larger tanks and higher
passenger and cargo carrying capacity.
VAN MANSION 177‑4BR
17.7' (5.39 m) with 8' (2.43‑m)
cab length
Similar design with a wet bath and a smaller fridge
